🏆 Space-Saving Design ⚡ 2-in-1 Solution

Compact Blister Forming & Cutting Integrated Machine

All-in-One Thermoforming and Die Cutting System

Compact integrated machine combining blister forming and precision die cutting in one space-saving unit. Perfect for small to medium volume production with limited floor space.

← Back to Products Product Details → Technology Features
Home / Products / Compact Blister Forming & Cutting Machine

Product Gallery

Comprehensive view of the Automatic Disc Blister Sealing Machine Series

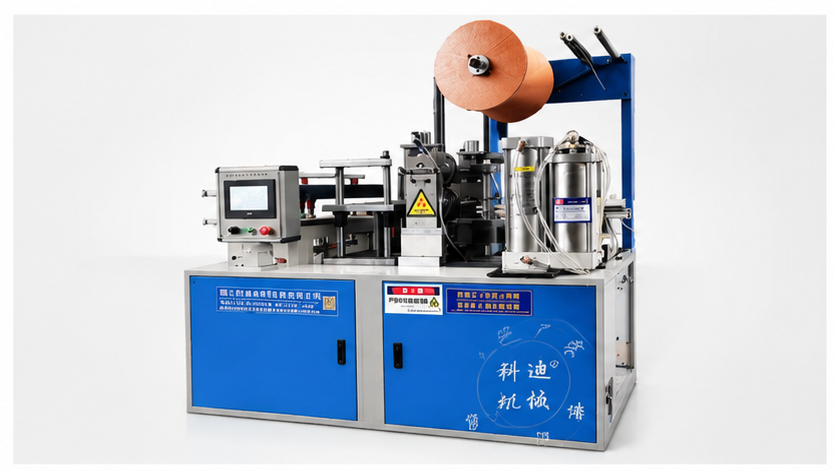

KD-400x300 XSA - Small thermoforming and die-cutting machine

KD-400x300 XSA/B - Small Thermoforming and Die-Cutting Machine

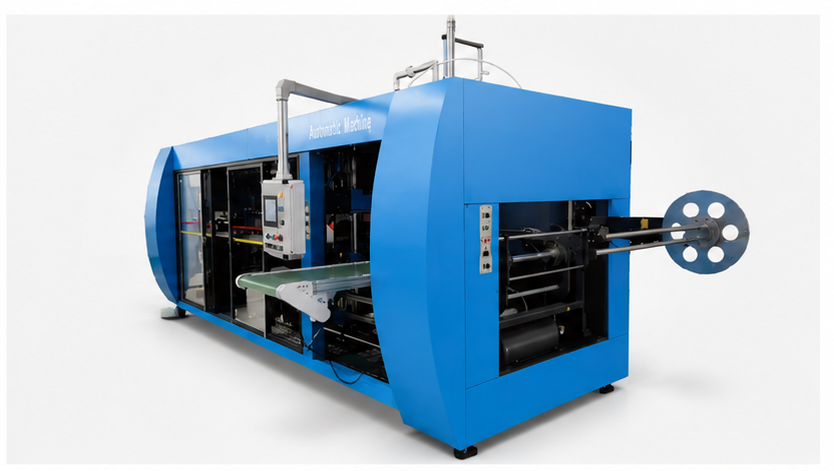

Positive and negative pressure two-station vacuum forming integrated machine

Positive and negative pressure two-station vacuum forming integrated machine

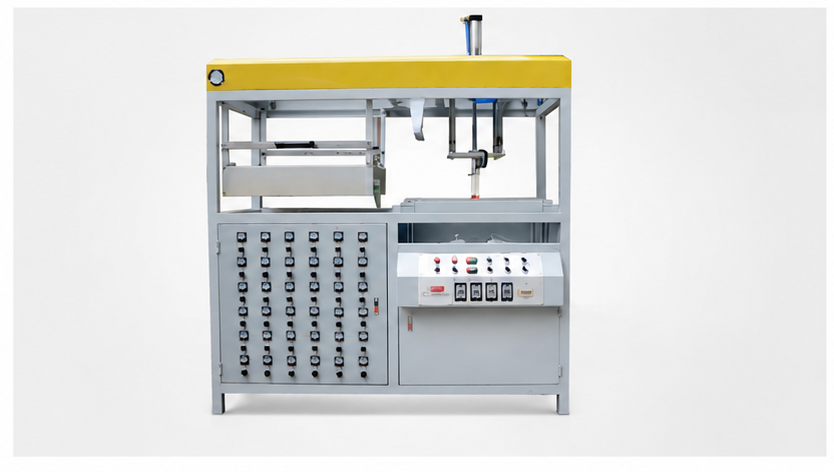

Single-station semi-automatic positioning blister molding machine

Single-station semi-automatic positioning blister molding machine

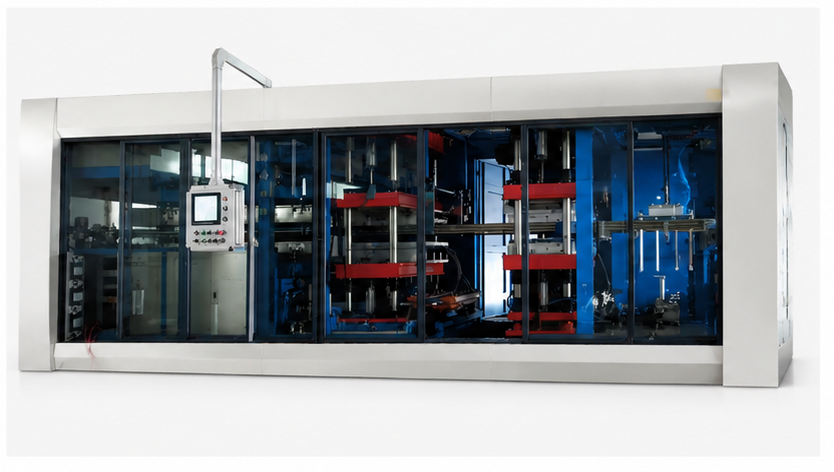

Positive and negative pressure three-station integrated blister molding machine

Positive and negative pressure three-station integrated blister molding machine

Product Description

Compact integrated blister forming and die cutting machine for efficient small to medium volume production

Product Specification

Compact integrated machine combining thermoforming and precision die cutting in one unit. Designed for small to medium volume production with limited floor space. Suitable for PVC, PET, PP, PS and other thermoplastic materials. Ideal for businesses requiring versatile packaging solutions without large equipment investment.

Application Industries

  • ✓ Small electronics (USB drives, earphones, cables)
  • ✓ Hardware & fasteners (screws, bolts, small tools)
  • ✓ Cosmetics & personal care samples
  • ✓ Toys, gifts, crafts, promotional items
  • ✓ Food packaging, pharmaceutical samples

Key Features

Compact Design

Space-saving integrated design reduces floor space requirements by up to 50% compared to separate machines.

Cost Effective

Lower initial investment compared to purchasing separate forming and cutting machines.

Quick Changeover

Easy mold and die changing system enables fast product switches for flexible production.

Working Principle

Integrated thermoforming and precision die cutting in one compact system

Two-Stage Integrated Process

The compact blister forming and cutting integrated machine combines two essential packaging operations into one streamlined system, eliminating the need for separate equipment and reducing production complexity.

Process Flow:

  1. Material Feeding: Plastic sheet is fed into the forming station
  2. Heating: Infrared heaters heat the plastic to optimal forming temperature
  3. Forming: Vacuum and/or pressure forming creates the blister cavity shape
  4. Cooling: Formed blister is cooled to solidify the shape
  5. Transfer: The formed sheet moves to the cutting station (integrated transfer system)
  6. Die Cutting: Precision die cuts the blister to exact dimensions and trims excess material
  7. Output: Finished blisters are discharged, ready for product loading and sealing

Technical Advantages:

  • Eliminates intermediate handling between forming and cutting
  • Reduced labor costs with automated transfer system
  • Consistent cutting precision with registered positioning
  • Quick mold and die changeover for flexible production
  • Ideal for startups and small businesses with limited space and budget
